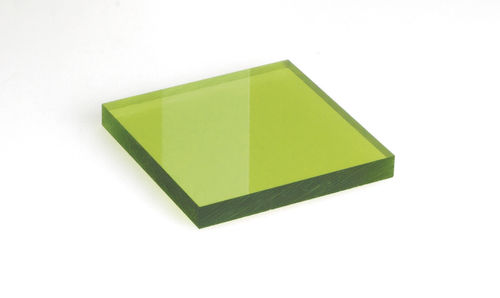

Nd:YAG laser window 100-K0242-3-100x200

The 0242-3 laser protection filter is particularly suitable as laser protection for powerful Diode (940 – 980 nm), Yb:YAG/Scheibe (1030 nm), Nd:YAG (1064 nm) und Faser (1060 – 1080 nm) lasers. However, other lasers are also covered by the filter. The laser safety filter is made of a special red plastic and has a daylight transmission of approx. 57% at low thickness. The laser safety filter is qualified according to the regulations of EN 12254. • dimensions 100 x 200 mm • also available in the standard size 210 x 297 mm and maximal size 1000 x 1800 mm • other customized sizes available on request • suitable window frames available on request Qualified protection levels according to EN 12254 Wavelengths - Protection levels 180-315 - D AB7 + IR AB2 (OD7+) >315-355 - DIR AB5 (OD10+) >355-360 - DIR AB5 (OD9+) 360-370 - DIR AB5 (OD8+) >370-420 - DIR AB5 (OD7+) >420-430 - DIR AB5 (OD6+) >430-434 - DIR AB5 (OD5+) >435-443 - DIR AB4 (OD4+) >443-448 - DIR AB3 (OD3+) >448-452 - DIR AB2 (OD2+) >452-461 - DIR AB1 (OD1+) 710-755 - DIRM AB1 (OD1+) >755-785 - DIRM AB2 (OD2+) >785-805 - DIRM AB3 (OD3+) >805-830 - DIRM AB4 (OD4+) >830-860 - DIRM AB5 (OD5+) >860-880 - DIRM AB6 (OD6+) >880-900 - D AB6 + IRM AB7 (OD7+) >900-1070 - D AB6 + IR AB7 + M AB8 (OD8+) >1070-1075 - DIRM AB6 (OD6+) >1075-1080 - DIRM AB5 (OD5+) >1080-1090 - DIRM AB4 (OD4+) >1090-1100 - DIRM AB3 (OD3+) >1100-1115 - DIRM AB2 (OD2+) >2225-2456 - D AB2 (OD2+) >2456-2560 - D AB1 (OD1+) >2710-2900 - D AB1 (OD1+) >2900-11000 - D AB2 (OD2+) PF CE
