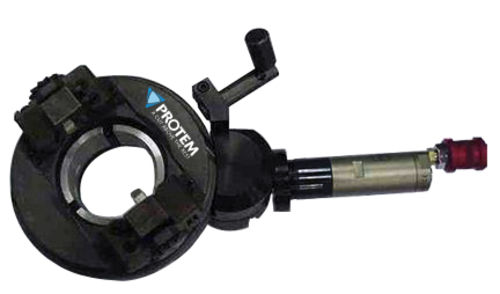

Automatic orbital tube-cutting machine TTS-RD

pneumatic

The TTS-RD cutting machines are designed to cut and bevel all types of tubes, individually or simultaneously. The collet clamping system of the TTS-RD series allows for quick set-up and an easy concentricity adjustment. This clamping method is particularly suited to small wall thicknesses in order to avoid tube distortion. These machines have the lowest clearance of the series. Splitframe design. All gears are protected for increased protection of the operators. They can be controlled remotely for operations being done in ionizing areas, for example. Standard Capacity: 0.839" - 5.563“ (21.3mm - 141.3mm Advantages: • Mobile • Powerful • Easy and Safe use for the Operators • No Heat Affected Zone • High Accuracy • Fast and easy mounting • The tool bits can be changed and adjusted very quickly • Smooth and Burr-Free Surface Finish • No vibration during the machining process • Splitframe Configuration • Adapted for works in tight spaces Clamping : manual with key Motorisation : Pneumatic driven machines have to be used with a lubricating filter. Recommended option: regulation valve.
