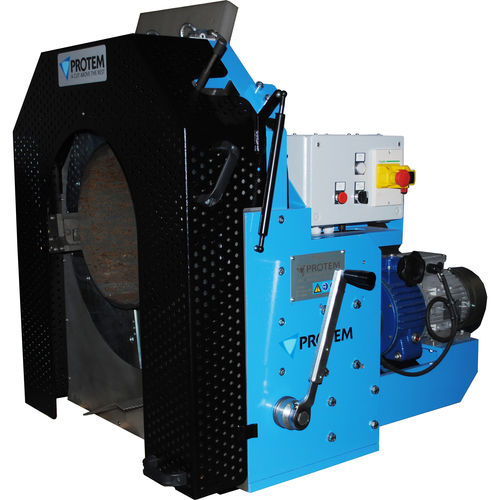

Stainless steel cutting machine MF420

tubemanually-controlledthree-phase

Tube cutting and bevelling machine MF-420 Clamping- and machining range: 168 mm 406 mm OD Feed: 50 mm/ 80 mm Rotation: 16 52 rpm Weight: ~ 500 kg Drive, electric: Three phase 380 V Maximum wall thickness for bevelling: C-steel 15 mm, Stainless steel 12,7 mm Technical Advantage: - Very robust design - Machine entirely electrically driven - Facility of use and adjustment - Concentric clamping with a ratchet spanner - Wide range of use and wide capacity - Oversize motor reducer - Speed regulation of rotation thanks to a mechanical variator - Automatic advance clutch advances - Protection housing - System comb tears off chips - Tools HSS or carbide inserts The machine type MF-420 has been specially designed to cut and bevel tubes from 168 mm OD to 406 mm OD in one operation. Possible bevel angles are 30° and 37.5°. The MF420 with HSS tool bits. The tool holder plate is equipped with two tool carriages. The feed movement is performed automatically. The MF machines are driven electrically, are having a speed regulation and a quick operatable concentric clamping system. A safety cover with stop-function protects the operator. These machines are performing repeatable high quality weld preparations on tubes with all type of materials (steel, stainless steel and other alloys). According to the operation conditions several options can be integrated: - Automatic pneumatic clamping system - Lifting table - Lubrification system - Kit for small diameters - Dual clamping system (recommended for production lines)
