Pneumatic chamfering machine US25CH
portablefor tubesinside grip

Pneumatic chamfering machine - US25CH - PROTEM - portable / for tubes / inside grip
Pneumatic chamfering machine - US25CH - PROTEM - portable / for tubes / inside grip
Pneumatic chamfering machine - US25CH - PROTEM - portable / for tubes / inside grip - image - 2
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Type
portable
Applications
for tubes
Other characteristics
inside grip

Description

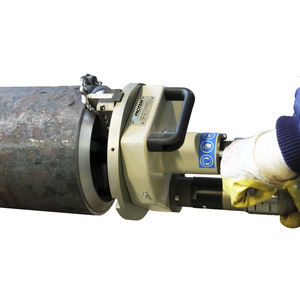

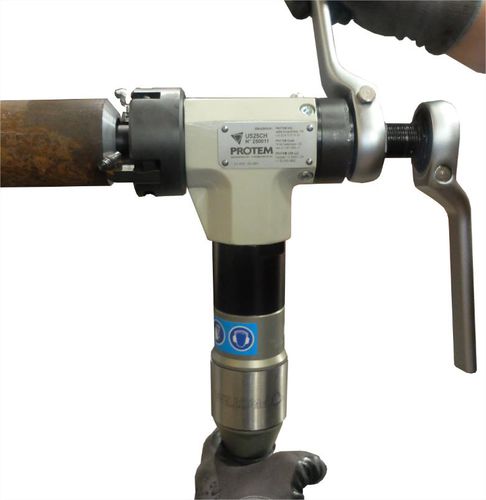

The PROTEM US25CH will perform repeatable high quality weld end preparations on virtually all materials including mild, chrome, stainless steel, duplex, super duplex, copper-nickel alloy steel, inconel, P91, aluminium, copper, exotic alloys, etc. The ID Mount and portable US25CH is adapted for the maintenance and repair of Boiler and Heat Exchanger Tubes. It features a modified torque, the tool-holder plate features 2 grooves to mount standard HSS tool-bits, 2 grooves with locking wedges to mount insert holders, the addition of a double-lip seal to prevent chips from entering into the machine when working on ceiling mounted panels/components, the addition of a sintered guide ring to replace the needle bearing, the addition of a bushing (protection against chips) , a specific longer clamping shaft (specifically designed to clamp after flared parts) basic blades with a 8° angle. Standard Capacity: 24mm - 90mm (0.944“-3.543“)
