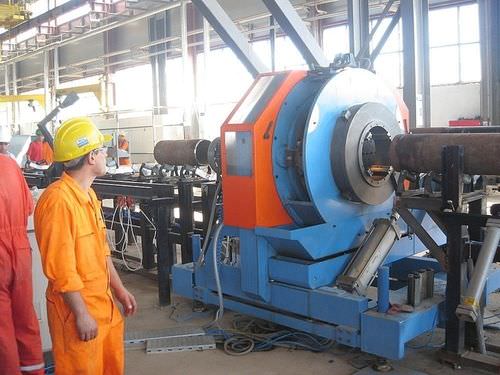

Pipe end chamfering machine CTA

squaring

The electric BB machine can be used either on-site or in the workshop. This heavy duty beveller will bevel, face and counterbore individually or simultaneously heavy wall pipes. It will perform repeatable high quality weld preps on most metal pipes including stainless, duplex, super duplex from 3” to 24” outside diameter (88.9 mm OD up to 610 mm OD). The machine is a bench beveller, can be fixed or not on the floor, is easily installed and clamps the outside diameter of the pipe. It can be easily operated by one operator. Used with the optional profile tracking device, it will machine oval pipes, leaving a root face of a consistent width, which is required when using orbital welding heads.
