Portable chamfering machine PFM-HSB

for pipe ends

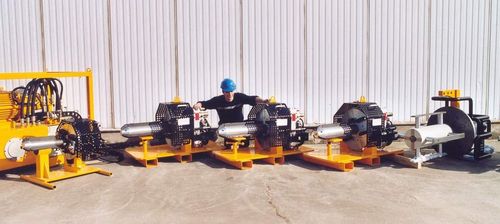

The BEVELER TYPE PROTEM US 150 is a portable tube, pipe bevelling and chamfering machine. PROTEM US 150 IS THE WORLD LEADER FOR ON SITE BEVELLING EQUIPMENTS. The US150 portable pipe bevelling tool is the most powerful, robust, reliable and versatile bevelling and facing machine in the world. They are available in diameter ranges of 5.9’’ to 20’’ ID (150-508 mm). The standard tool plate accepts multiple tool bits, allowing up to four simultaneous machining operations.Operations can include bevelling, facing, counterboring, compound bevelling, OD chamfering, removal of weld joints on tube sheets, lengthening of tubes on tube sheets. The US150 has a self-accepting torque system and an integral drive motor. The robust US150 performs repeatable high quality weld preparations on all types of materials including stainless steel duplex, super duplex, inconel, and P91. Both the machining capacity and OD Clamping capacity is 150 mm ID – 508 mm. Bevels can be ordered as facing, 30 and 37°30 bevel, J-bevel, and compound bevel with other bevels available on customer's request.
