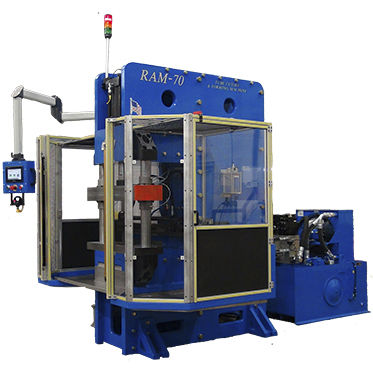

Pipe-end forming machine RAM-70

tubemetalCNC

Description 70 ton 7 position progressive ram end forming and tube cut-off machine for tube and pipe from 0.125’’- 7.0’’ diameter. Ram-70 has tube cut-off capability for after bend. Proto-1's tube cut-off technology is industry leading and allows for a quick cut-off resulting in no burr's. Proto-1's RAM-70 End Form Applications: offset expands, coping, piercing, trim/form, tube reducing, bending, swaging, spline, slotting, hole punch, beading, flaring, notching, and large bead. Specifications Tube Diameter: .125" - 7.0" Tube Wall: .020" - .120" Cycle Time: Depends on tooling and material (Contact sales for more information) Hydraulic Cylinders Clamp (70 ton vertical with 8" bore and 18" stroke) Hydraulic Cylinders Ram (70 ton horizontal with 8" bore and 14" stroke) Tooling Shuttle Bar: 7 position servo controlled shuttle (1-tube stop and 6-tools) Dimensions: 138.9" length x 96.6" width x 114.1" height Standard Features Warranty: One year from date of delivery Voltage: Standard (480v/60hz/3phase) Controls: Allen Bradley PLC Operational Screen: Allen Bradley HMI Touchscreen Oil Tank: 200 gallons Hydraulic Oil Cooling: Fan air cooled system Part/Tooling Cooling: Flood cooling system w/ drip pan Paint Color: Proto-1 blue Cycle Start: Finger switch FAST Technology Safety Features Light curtains E-stop on the swing arm Pneumatic lockout point Electrical lockout point Optional UL or CUL certifications can be added for additional cost Other power options are available and can be quoted Custom control available upon request and can be quoted Custom designed fixtures for tubing Water cooling available upon request Custom safety features available upon request
