Pipe-end forming machine RFM-10

metalCNC

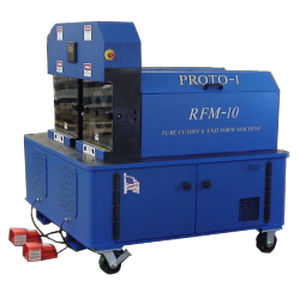

The RFM-10 is a rotary end forming and tube cut-off machine for tube and pipe from 1.5"- 10.0" diameter. Machine has capability for tube cut-off up to 5.0". Our RFM-10 is leading the industry in tube cut-off technology and will deliver a fast chip-less cut after bend. The RFM-10 can handle the toughest materials such as titanium and inconel. Proto-1's RFM-10 End Form Applications: tube reducing, slotting, hole punch, beading, knurl, flaring, notching, large bead, and norma ball. Specifications Tube Diameter: 1.5" - 10.0" Tube Wall: 0.020" - 0.120" Cycle Time: 4-13 seconds depending on end form and material type Clamp Air Cylinders: (2) 8" bore and 4" stroke Drawbar Cylinder: 8" bore and 4" stroke Kickoff Air Cylinder: 2" bore and 8" stroke for ejecting scrap Dimensions for Singlehead: 75.2" length x 36.6" width x 65.7" height Dimensions for Doublehead: 76.7" length x 63.1" width x 66.9" height Standard Features Warranty: One year from date of delivery Voltage: Standard (480v/60hz/3phase) Operation: Pneumatics Controls: Allen Bradley PLC Operational Screen: Allen Bradley HMI Touchscreen Paint Color: Proto-1 blue Cycle Start: Foot pedal FAST Technology Safety Features Pneumatic lockout point RF ID switch on hood(s) Electrical lockout point Front lexan guard with interlock key Optional Doublehead model available for different operations or tube sizes Debur attachment for end finishing before/after process (singlehead only) Cam attachment to allow machine to form tube from 1.5" down to 5/8" Exlar electric servo actuator for fast and precise adjustment Machine available in hydraulic version if air consumption is a problem
