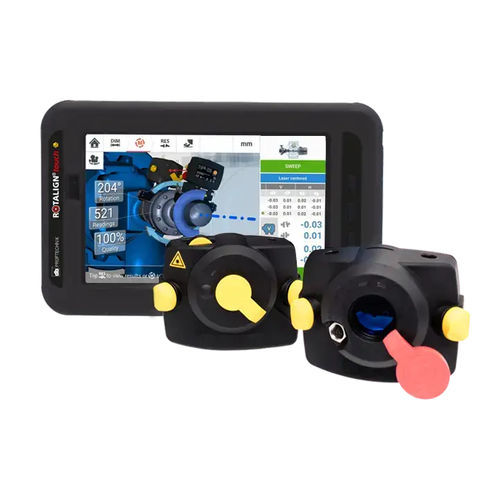

Laser alignment system ROTALIGN Touch EX

shaftmeasurementATEX

Adaptive alignment features when working in dangerous areas  • ATEX/IECEx Zone 1 certified including ruggedized IP68 tablet device • Single-laser technology sensALIGN 5 featuring SWEEP and PASS Mode for uncoupled shafts • Active Situational Intellgence • Simultaneous Horizontal and Vertical Live Move + Move Simulator • Thermal growth and targets • Spacer coupling and in-situ Cardan shaft alignment with rotating arm bracket • Soft Foot Wizard to diagnose soft foot problems • 6-machine train alignment • Advanced vertical machine alignment with vertiSWEEP continuous measurement mode • ALIGNMENT RELIABILITY CENTER 4.0 PC software including auto-activation and PDF reporting • Mobile connectivity with integrated Wi-Fi, Bluetooth, RFID and camera Advanced laser shaft alignment in EX/ATEX areas ROTALIGN touch EX is Zone 1 ATEX/IECEX certified. Packed with user-friendly alignment features unique to PRUFTECHNIK, the ROTALIGN touch EX shortens the measurement time with: • Continuous SWEEP Mode for high-quality measurement in only one shaft rotation • Live Move function for simultaneous real-time machine corrections in both horizontal and vertical directions • vertiSWEEP to measure vertical machines in one rotation of the shaft • Cardan shaft rotating-arm bracket allows measurements to be performed without removing the shaft • Soft Foot Wizard to diagnose soft foot problems • Move Simulator lets the operator simulate shim values and horizontal corrections before moving the machine Have instant access to the critical data you need with full mobile connectivity.
