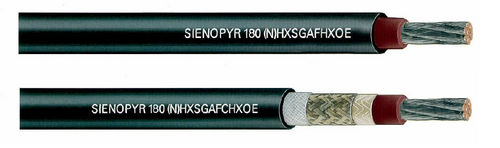

Power cable SIENOPYR(180) (N)HXSGAFHXÖ/(N)HXSGAFCHXÖ

DINarmored

Technical Details Trademark SIENOPYR(180) Type Designation (N)HXSGAFHXÖ EN50382-2 - (without screen) (N)HXSGAFCHXÖ EN50382-2 - (with screen) Standard Design based on DIN EN 50382 Application These cables are intended for use in railway rolling stock as fixed wiring, or connection where limited flexing in operation is encountered, they may be used both in- and outdoors, e.g. flexible between car floor and bogies. They are also usable for unfused connections in switchgear and distribution boards up to 1000 V (DIN VDE 0100-520 and DIN VDE 0660-500) and in accumulator circuits (DIN 5510 part 5). Typical uses are auxiliary circuits at line voltage, traction circuits, electric heating fed at line voltage. The cables feature high thermal safety margins and thus they are especially suited for installations in adverse ambient conditions (multiple cables in channels, limited venting, high ambient temperatures etc.) In other respects, DIN EN 50355 applies. Usable on railway vehicles having the fire protection grade 4 to DIN 5510-2:2009-05.
