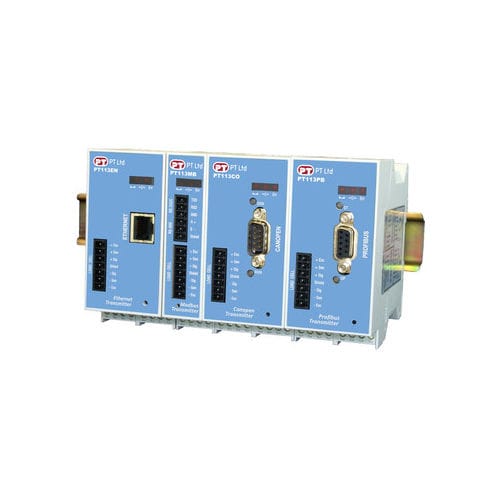

Ethernet weight transmitter PT113 series

Modbus RTUdigitalDIN rail

The PT113 digital transmitter family is designed for static or dynamic weighing, force and pressure measurement processes to provide fast and accurate digital data through RS-232C, RS-485, Ethernet TCP/IP and fieldbus systems such as PROFIBUS, Modbus TCP, Modbus RTU, PROFINET, Ethernet/IP, EtherCAT and CANopen. Weighing functions such as Zeroing, Taring, Power-On zero, Net indication at power on, Motion detection, etc. are integrated into PT113 transmitters. The PT113 has configurable vibration suppressing digital filter settings, calibration with a calibration weight or by electronic calibration without calibration weights (dCal ) via PT AzCom software. DIN rail type enclosures provide easy mounting in control cabinets. INTEGRATION • RS-232C, RS-485 • Modbus RTU • Modbus TCP on Ethernet • PROFIBUS • PROFINET • EtherNet/IP • EtherCAT • CANopen • **Enquire for more protocols FEATURES • Up to 100 measurements per second • 8,000,000 internal resolutions • Up to 100000 scale divisions for weighing • Uni-directional or Bidirectional measurement mode for tension/compression • Up to 6x 350 Ω load cells • Weighing functions: Zeroing & taring, power-on zero, AZT, net indication at power on, motion detection. • Industrial design with small size and standard DIN rail mounting • vCal Electronic calibration from PC
