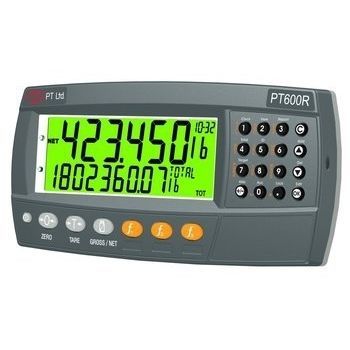

Digital weight indicator PT600R

LCD displaypanel-mountIP55

Advanced Function Digital Weighing Indicator - PT600R The PT600R series indicators feature an innovative new design concept combined with many important technological improvements that are totally new to the weighing industry. The exceptionally large LCD display (29mm main digits) is complemented by super-bright LED backlighting to ensure easy reading in all lighting conditions (including bright sunlight). The silicone keypads offer superb feedback with a precise soft-touch operation. There are three assignable function keys to alleviate confusion when performing special keystroke operations. SPECIFICATIONS • Resolution : Up to 100,000 divisions, Min of 0.25µV/Division • Zero Cancellation : ± 2mV/V • Span Adjustment : 0.1mV/V ~ 3mV/V • Stability/Drift : Zero < 0.1µV/°C ( + 8ppm Deadload Max) • Span TC : < 8ppm/°C • Linearity Error : < 20ppm • Noise : < 0.2µVp-p • Excitation : 7.4V for up to 16 x 350 or 32 x 700Ω Load Cells, (4-wire or 6-wire plus shield) • Max Total Load Cell Resistance : 1,000Ω • A/D Type : 24bit Sigma Delta with ± 8.388,608 internal Counts • Operating Environment : -10 ~ 50°C Ambient Temperature, < 90% Non-Condensing Humidity, -20 ~ 50°C Ambient Storage • IP55 when panel mounted, or with rear boot (otherwise IP40) • Case Materials : ABS, Silicone Rubber, Nylon, Acrylic (no halogen used) • Packing Weight : Basic Indicator 0.6kg • Battery Backed Clock Calendar : Battery Life 10 Years Minimum • Assignable Function Keys : Printing, Unit Switching, Counting, Manual Hold, Peak Hold, Totalising. • LCD (with 4 Alpha-numeric Displ : LED Backlit • Primary Display : 6 x 28.4mm High Digits with Units & Annunciators • 2nd Display : 9 x 17.6mm digits with units
