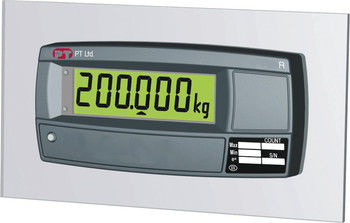

Small Remote Display For Weighing Controller - RD3
A compact remote display that can be panel mounted or desk mounted and connects to the PT200M, PT200P, PT200X and PT600R indicators without needing any RD3 configuration.
SPECIFICATIONS
• Display : 20mm LCD, 6 digits, LED backlighting.
• Update Rate : 10 updates per second
• Temperature : -10 ~ 50°C
• Humidity : <90% non condensing
• PT200M/P/X & PT600R Indicators : Auto-detects all A, B, & C outputs
• Power Supply : 12~24VDC or 4x AA alkaline cells with optional desk mount.
• Communications : RS-232 - 2 wire (receive only)
• Case Materials : ABS, Silicon Rubber, Nylon, Acrylic (no halogen used)
• Dimensions : 164x77x35 mm (as panel mount).
• Options : Desk mount shell and battery compartment.
• Weight : 0.36kg
