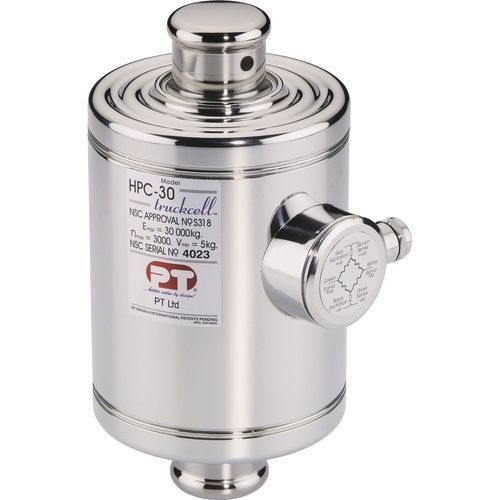

Compression load cell HPC series

canisterstrain gaugeweighing

The HPC (High Precision Compression) is a state of the art measurement device. It’s highly sophisticated and super sensitive electronics are housed in a rugged fully stainless steel enclosure. Fitted with power surge arrestors, anti-rotation mechanism and inert gas filled for component longevity, the HPC provides a true IP68 enclosure rating with more than 300 hours protection at 1.5m immersion. Purpose designed to meet the needs of the weighbridge and truck scale manufacturer, the cell is supplied in two optimum capacities of 30t and 45t. To ensure the exceptional performance of the HPC is optimised, PT offer specially designed mounting accessories. The HPC has formal approval in many countries for both capacities. It has a three-year warranty and is supplied individually packed with a detailed accuracy certificate traceable by serial number. SPECIFICATIONS • Nominal Capacity : 30t and 45t • Signal output at capacity : 2mV/V ± 0.1% • Linearity Error : < 0.020% FSO • Non-Repeatability : < 0.010% FSO • Combined Error : < 0.023% FSO • Hysteresis : < 0.017% FSO • Creep/Zero Return(30 mins) : < 0.023% / 0.017% FSO • Zero Balance : < 1.000% Capacity • Temperature Effect On Span/10ºC : < 0.010% FSO • Temperature Effect on Zero/10ºC : < 0.015% FSO • Compensated Temperature Range : -10 ~ 50°C • Operating Temperature Range : -30 ~ 65°C • Service Load : 100% of Rated Capacity • Safe Load : 150% of Rated Capacity • Excitation +ve : RED • Signal +ve : GREEN • Sense +ve : BROWN
