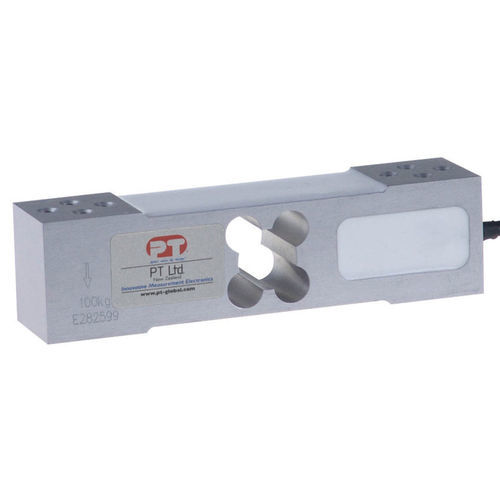

Platform load cell PTASP6-E series

single-pointstrain gaugeweighing

Aluminium Single Point Loadcell - PTASP6-E (50kg~300kg) Aluminium, Low Cost, 400x400mm platform. Medium to high capacity versatile single point load cell. Suitable for most simple weighing scales in industrial use. The PTASP6-E is a small physical footprint in relation to its capacity, making it ideal for low cost compact medium/high capacity scales. Typical applications often include packaging machines, filling machines, industrial process control. Sealed to IP65. SPECIFICATIONS Signal Output at Capacity : 2±0.2 mV/V Linearity Error : < 0.017% FSO Non-Repeatability : < 0.010% FSO Combined Error : < 0.020% FSO Off Centre Load Error : < 0.020% FSO Creep/(30 mins.) : < 0.015% FSO Zero Balance : < 2% Capacity Temperature Effect On Span/10C : < 0.014% FSO Temperature Effect on Zero/10C : < 0.017% FSO Operating Temperature Range : -35 ~ +65 C Compensated Temperature Range : -10 ~ +40 C Storage Temperature Range : -50 ~ 85 C Excitation +ve : RED Signal +ve : GREEN
