Platform load cell PTASP6-F series

single-pointstrain gaugefor crane

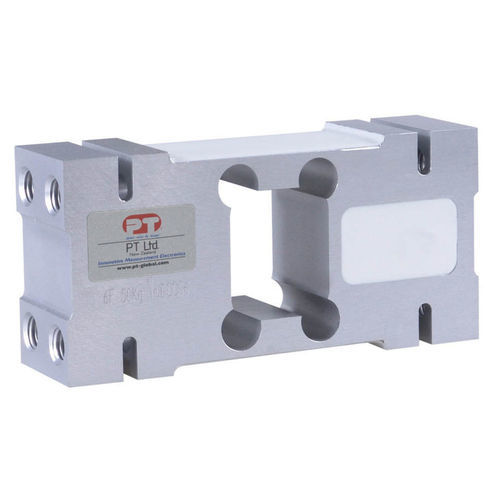

Aluminium Single Point Loadcell - PTASP6-F (50kg~2000kg) Aluminium, Low Cost, 600x600mm to 1200x1200mm platforms. The PTASP6-F is a super high capacity single point load cell. A unique design allows for very large platform sizes up to 1200mm x 1200mm. Direct mounted in this design makes a low profile platform with one single load cell. This load cell is used in many other applications where a relatively small high capacity cell can be housed in a construction such as in hanging or crane scales plus many other industrial applications from check weighing to safety areas. Two additional sense wires feed back the voltage reaching the load cell which improves performance. SPECIFICATIONS Signal Output at Capacity : 2±0.2 mV/V Linearity Error : < 0.017% FSO Non-Repeatability : < 0.010% FSO Combined Error : < 0.020% FSO Off Centre Load Error : < 0.020% FSO Creep/(30 mins.) : < 0.020% FSO Zero Balance : < 2.0% Capacity Temperature Effect On Span/10C : < 0.014% FSO Temperature Effect on Zero/10C : < 0.017% FSO Operating Temperature Range : -35 ~ +65 C Compensated Temperature Range : -10 ~ +40 C Storage Temperature Range : -50 ~ 85 C Excitation +ve : RED Signal +ve : BLUE Sense +ve : BROWN
