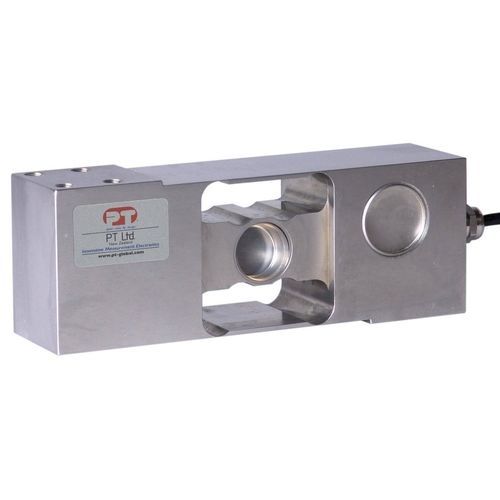

Platform load cell PTSSP6-GW

single-pointstrain gaugecapacitive

Stainless Steel Single Point Loadcell - PTSSP6-GW (200kg~500kg) Welded Stainless, Affordable, 600x600mm platform. The PTSSP6-GW is a fully welded stainless steel construction single point, sealed to IP68. Rated for capacities from 200kg to 500kg, with C3 accuracy class. Designed and built for minimal sensitivity to off-center loading common with single point use. Directly replaces many similar style 4 x M8 mounting hole stainless steel models. Optimized to offer superb accuracy right through the capacity range and recommended for use on platform scales, check weighing scales, bench scales, hopper scales and net-weighing units plus a variety of convey or style scales. SPECIFICATIONS Signal Output at Capacity : 2±0.2 mV/V Linearity Error : < 0.017% FSO Non-Repeatability : < 0.010% FSO Combined Error : < 0.020% FSO Off Centre Load Error : < 0.020% FSO Creep/(30 mins.) : < 0.020% FSO Zero Balance : < 1% Capacity Temperature Effect On Span/10°C : < 0.014% FSO Temperature Effect on Zero/10°C : < 0.017% FSO Operating Temperature Range : -35 ~ +65 C Compensated Temperature Range : -10 ~ +40 C Storage Temperature Range : -50 ~ 85 C Excitation +ve : RED Signal +ve : GREEN
