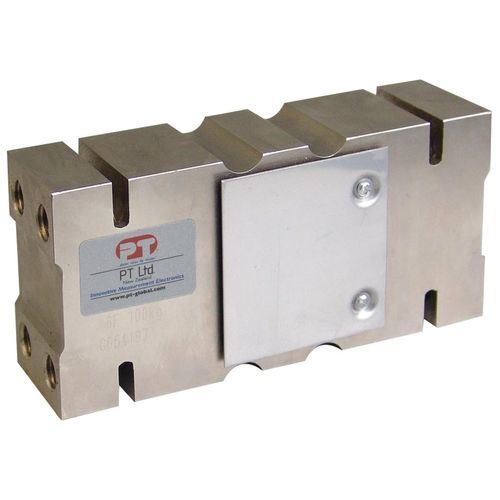

Platform load cell PTSSP6-F

single-pointstrain gaugeweighing

Stainless Steel Single Point Loadcell - PTSSP6-F (100kg~2000kg) Stainless, Affordable 600x600mm to 1200x1200mm platforms. The PTSSP6-F is a high capacity stainless steel single point load cell, sealed to IP65, Interchangeable with our aluminium PTASP6-F and compatible with many side mounted models such as the Tedea HOC model. Designed for platform scales, and hanging scales and found in packaging, closing machines/filling and convey or scales. The highest capacity single point on the market with a wide capacity spread from 100kg to 2000kg. Add to this its ability to accept a platform size up to 1200mm x 1200mm makes this the ideal choice for your simple single cell platform. Complete with a C3 accuracy class and designed with minimal sensitivity to off-center loading comon with single point use. SPECIFICATIONS Signal Output at Capacity : 2 ± 0.2 mV/V Linearity Error : < 0.017% FSO Non-Repeatability : < 0.010% FSO Combined Error : < 0.020% FSO Off Centre Load Error : < 0.020% FSO Creep/(30 mins.) : < 0.020% FSO Zero Balance : < 2% Capacity Temperature Effect On Span/10ºC : < 0.014% FSO Temperature Effect on Zero/10ºC : < 0.017% FSO Operating Temperature Range : -35 ~ +65 C Compensated Temperature Range : -10 ~ +40 C Storage Temperature Range : -50 ~ 85 C Excitation +ve : RED Signal +ve : BLUE Sense +ve : BROWN
