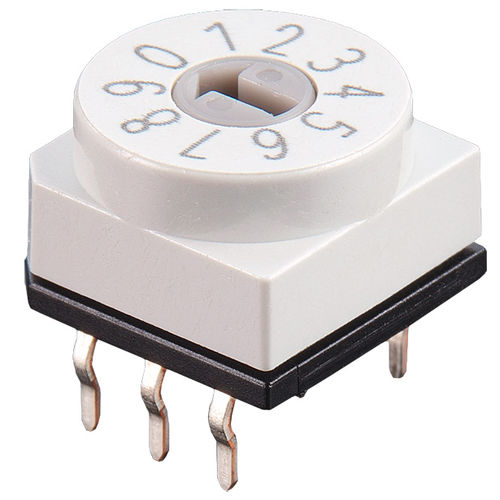

Rotary switch PT65
multipoleabrasion-resistantIP67

Rotary switch - PT65 - PTR HARTMANN GmbH - multipole / abrasion-resistant / IP67
Rotary switch - PT65 - PTR HARTMANN GmbH - multipole / abrasion-resistant / IP67
Add to favorites
Compare this product


Characteristics

Type
rotary
Number of poles
multipole
Protection level
abrasion-resistant, IP67
Other characteristics
sealed
Voltage

42 V

Diameter / length

10 mm
(0.4 in)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Width

10 mm
(0.4 in)

Height

6.5 mm
(0.3 in)

Description

Solid PCB pins Contacts with abrasion resistant hard gold plating Extra sealed design Switches are solder and flux sealed and washable Excellent detent, once more improved 100 % electronic inspection and testing Solid PCB pins ensure trouble-free assembly and safe connection. Contacts with abrasion resistant hard gold plating have low and stable contact resistance. ISO 9001 approved production together with 100% electronic final inspection and testing guarantee reliable operation. Figures are clearly visible and detention mechanism is precise for fast and easy operation. Many special designs are available on request or can be built according to customer's specification.
