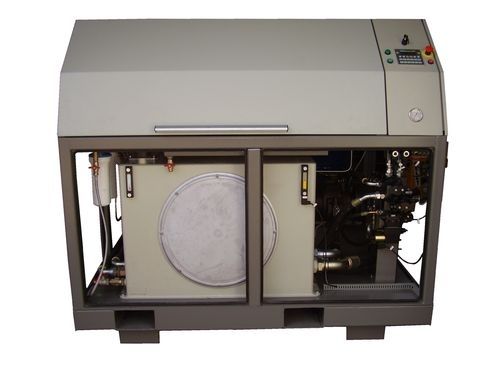

Piston pump PTV JETS - 7.5/60c

for pure waterelectricnormal priming

Use: Pure water cutting with more cuttingheads Abrasive jet cutting with one water orifice size .020" or with two water orifices size .014", or with 4 x .010" Top-quality model, fitted with electronic control Low oscillation of pressure High level of cutting pressure Air cooler not integrated in the pump Integrated electrical switchboard Power electrical switchboard not integrated in the pump Full-electronical control Easy and quick installation at the customer´s HP pump includes : Two-stage filtration unitfor mechanical filtration of inlet water Automatic bleed down valve as a safety element which depressurizes the HP tubing when pump is stopped Slow pressure increrase which reduces pressure shocks and electrical starting current Internal diagnostic system which stops the pump when the limit values are overpassed Air cooler of hydraulic oil with a closed cooling circuit Electrical switchboard for delta/ star start Pump control Full-valued remote control of the HP pump from the control system of the cutting table and from the cutting program 10 pressure levels
