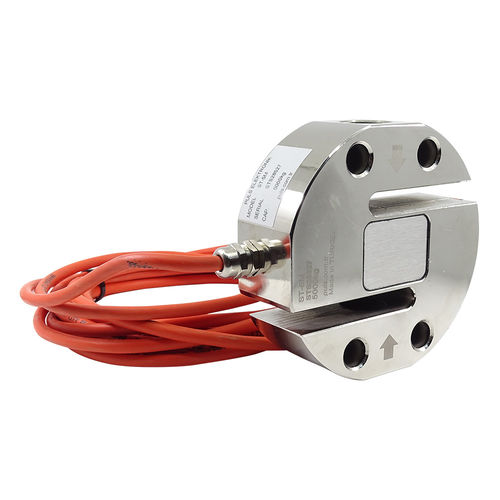

Tension/compression load cell ST SeriesS-beamsingle-axisstrain gauge
Add to favorites
Compare this product
Characteristics
- Type
- tension/compression
- Form
- S-beam
- Number of axes
- single-axis
- Technology
- strain gauge
- Output signal
- analog
- Applications
- weighing, for hopper, for silos, for crane, calibration, for mixers, for dosing, for bagging machines, for testing machine
- Other characteristics
- steel, nickel-plated
- Rated force
Min.: 300 kgf
Max.: 10,000 kgf
- Rated load
Min.: 300 kg
(661.39 lb)Max.: 10,000 kg
(22,046.23 lb)- Height
Min.: 77 mm
(3.03 in)Max.: 168 mm
(6.61 in)
Description
"ST2 type load cells are made of special alloy steel ma,terial and nickel plated for the purpose to increase strength against corrosion and industrial environmental conditions. ST type load cells operate with the shear beam principle in the direction of compression having strength against overloads and none-axial forces so that in compliance in particular to middle and high capacity weighing applciations. Manufactured as 10T and 20T. General Usage Area: • Truck Scales • Middle and High Capacity Silo and Tank Weighing Applications"
Catalogs
No catalogs are available for this product.
See all of Puls Electronic‘s catalogs
