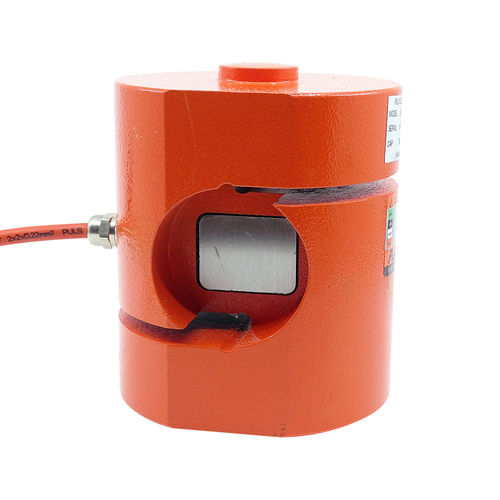

Compression load cell ST-2W SeriesS-beamsingle-axisstrain gauge
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- S-beam
- Number of axes
- single-axis
- Technology
- strain gauge
- Output signal
- analog
- Applications
- weighing, for hopper, for silos, for crane, for weighbridges, for mixers
- Other characteristics
- steel, high-capacity, high-sensitivity, temperature-compensated, rugged
- Rated force
Max.: 20,000 kgf
Min.: 10,000 kgf
- Rated load
Max.: 20,000 kg
(44,092.45 lb)Min.: 10,000 kg
(22,046.23 lb)- Height
Max.: 146 mm
(5.75 in)Min.: 146 mm
(5.75 in)
Description
"ST-2W type load cells are made of special alloy steel material that isolates it from corrosion and industrial environmental conditions. Operating with shear beam principle and having electrostatically charged paint cover, ST-2W type load cells were designed for compression applications. They are ideal for middle and high capacity applications or for force meters. 10 Tons capacity for tension applications is available. The ST-2W series load cells highly withstand to overloading and to the effects of off-axis loading. General Applications - Truck Weighings - Silo and Tank weighings with middle and high capacities - Material Testing machines Capacity ST-2W series load cells are produced in 10,20 ton capacities"
