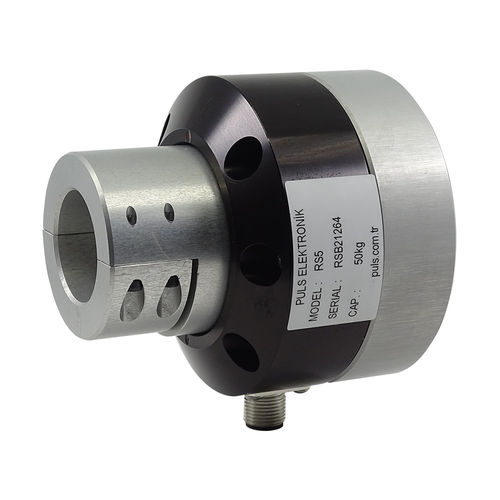

Tension load cell RS5 Series
single-pointsingle-axisstrain gauge

tension load cell
tension load cell
Add to favorites
Compare this product


Characteristics

Type
tension
Form
single-point
Number of axes
single-axis
Technology
strain gauge
Output signal
analog
Applications
for bearings
Other characteristics
aluminum alloy, aluminum construction, anodized aluminum, temperature-compensated
Rated force

Max.: 150 kgf

Min.: 25 kgf

Rated load

Max.: 150 kg
(330.69 lb)

Min.: 25 kg
(55.12 lb)

Length

Max.: 85 mm
(3.346 in)

Min.: 85 mm
(3.346 in)

Height

Max.: 88 mm
(3.46 in)

Min.: 88 mm
(3.46 in)

Description

"RS5 series load cells were developed to control the tension in winding / unwinding system. It senses the force applied to roll while the RS5 series load cell is in use. It is widely used in textile and printing applications.The RS5 series load cells are made of special anodized alloy that isolates it from corrosion and have visually aesthetic external view. General Applications - Tension Control Applications Capacity The RS5 series load cells are produced in 25,50,150kg capacities."
