Charging generator 3DCYK06

digitalhigh-voltagestatic

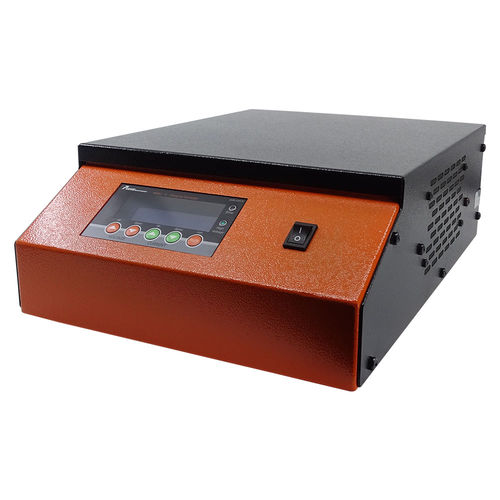

"Static Charging Generator is appropriate for high voltage applications and for powered bars. The unit's output voltage and protection current value are digitally set by using front panel. The output voltage can be set between 0kV-60kV and as to current it is between 0 - 2,5mA. The power supply includes remote on/off and remote voltage adjustment settings and also can produce both positive and negative charges. Static Generator provides convenience in its using. It is easy to install. The front panel turning to 180° was made to archive the easement in use. Static Generator is fitted out of digital output setting and 4xHV output to utilize the high voltage applications and charging bar. General Specifications Easy to install / Digital output setting / Rotating front panel by 180° / 4 x HV output Applications In mould labelling (IML) / Bags on roll / DVD manufacture / Board laminating / Compensating stackers / Film winding to roll cores / Flat bag with gusset / Multi sheet feeders / Side weld bag handles / Shrink wrapping / Electrostatic bonding"
