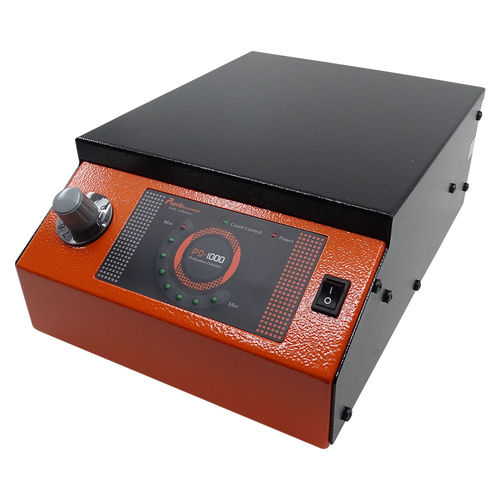

Perforation detector 3 PD1 01 S020

industrialpulse output

Puls Perforation Detector is used to detect perforation on any material in packaging industry. Especially it is useful in bag making machinery to count the bag numbers by detecting and reporting the perforation. Its detection capacity is 900 pcs/min. Output voltage can be adjusted between 6kV-21 kV by rotating and fixing the knob on the front panel. The leds on the front panel show the high voltage level. If perforation is detected, the count led flashes. The high voltage bar or probe with one emitter pin is connected to the output of the equipment and it is mounted above the web moving on grounded surface. If a spark occurs from the high voltage bar to the earth via perforation, detector will report it by a 30 msn opto coupler pulse output.
