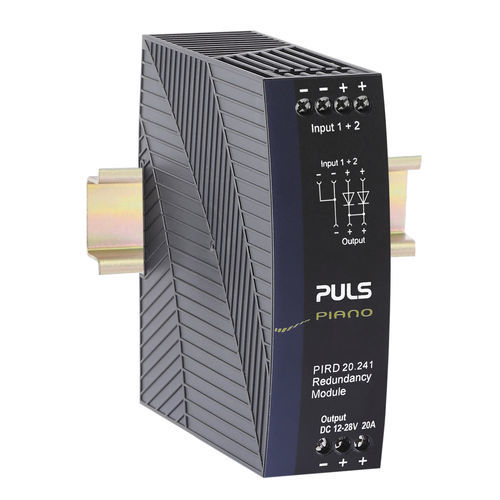

Redundancy module for DC power supplies PIRD20.241

switch-mode DC

Input current - 2 x 10 A Nominal current per input - 10 A DC Input voltage - DC 12 V - 28 V (± 25 %) Voltage drop - 460 mV Output data Output current range - 20 A Output current - 20 A Output current short circuit max. - 26 A Derating - 0.5 W/°C for >+55 °C Overview Dimensions (WxHxD) - 39 mm x 124 mm x 124 mm Weight per unit (excl. packaging) - 280 g Mounting method - DIN rail Operating temp. range - -40 °C to 70 °C Connection method - Screw terminals Power losses, typ. - 4.6 W No-load losses, typ. - 0 W MTBF SN 29500 @ 40 °C (h) - 20310000 h Cost effective solution to build redundant systems Dual input with single output Two diodes (common cathode) DC 12-28 V ±25 % Wide-range input Full power between -40 °C and +55 °C Width only 39 mm Large screw terminals Easy wiring: distribution terminal for negative pole included
