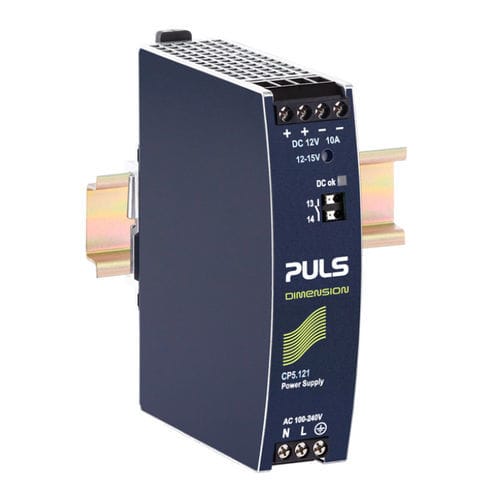

AC/DC power supply CP5.121adjustablesingle-phasewith overload protection
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- adjustable
- Network
- single-phase
- Protection
- with overload protection
- Mounting
- DIN rail
- Certifications
- CE
- Other characteristics
- with power factor correction (PFC), wide input range
- Input voltage
Min.: 100 V
Max.: 240 V
- Output voltage
Min.: 12 V
Max.: 15 V
- Current
8 A, 10 A
- Power
120 W
Description
Input data
Harmonic correction - active
Power factor - 0.91
Input inrush current limitation - active
Input inrush current - 4 A / 4 A
External input fuse recommendation - B-6 A / C-6 A
Output data
Power reserves - 20 % Power Boost
Derating - 3 W/°C for >60 °C
Ripple and noise voltage max. - 50 mVpp
Overview
Dimensions (WxHxD) - 32 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) - 440 g
Operating temp. range - -25 °C to 70 °C
Connection method - Screw terminals
Efficiency, typ. - 94 %
Power losses, typ. - 7.7 W
MTBF SN 29500 @ 40 °C (h) - 732000 h
DC-OK signal - yes
Width only 32 mm
Efficiency up to 94.0 %
Excellent partial load efficiency
20 % output power reserves
Easy fuse breaking – 3 times nominal current for 12 ms
Safe HiccupPLUS overload mode
Minimal inrush current surge
Full power between -25 °C and +60 °C
DC-OK relay contact
