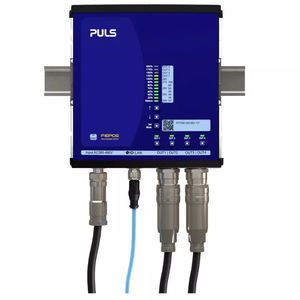

AC/DC power supply FPS300.241-002-101

adjustablesingle-phaseDIN rail

Power factor - 0.97 Input inrush current limitation - NTC Input inrush current - 3 A / 7 A External input fuse recommendation - B-6 A / C-6 A Output data Power reserves - 600 W (up to 5s) Derating - 10 W/°C for +55 to +70 °C Ripple and noise voltage max. - 50 mVpp Overview Dimensions (WxHxD) - 182 mm x 183 mm x 59 mm Weight per unit (excl. packaging) - 1200 g Operating temp. range - -25 °C to 70 °C Connection method - Input: HanQ4/2 | Output: HanQ4/0 Efficiency, typ. - 95.6 % Power losses, typ. - 16.2 W DC-OK signal - yes 600 Wpeak 5s 100-240V wide-range input 95.6 % full load and excellent partial load efficiencies DIN rail mounting possible, option “D” Output connected to PE (PELV) Version without connection to PE on request Large output capacitors Not potted Negligible low input inrush current surge DC-OK relay contact Input HanQ4/2 / Output HanQ4/0
