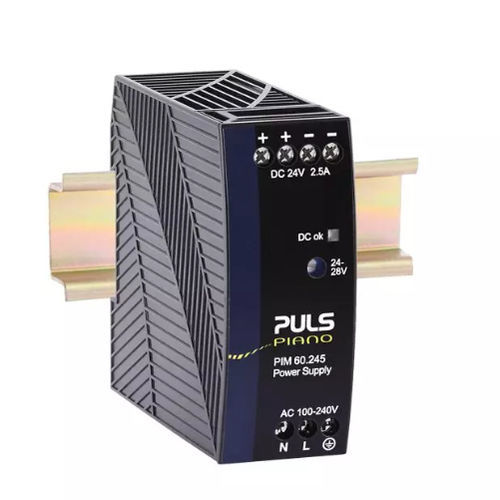

AC/DC power supply PIM60.245adjustablesingle-phaseDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- adjustable
- Network
- single-phase
- Mounting
- DIN rail
- Certifications
- CE
- Other characteristics
- wide input range
- Input voltage
Min.: 100 V
Max.: 240 V
- Output voltage
Min.: 24 V
Max.: 28 V
- Current
2.1 A, 2.5 A
- Power
60 W
Description
Power factor - 0.47
Input inrush current limitation - NTC
Input inrush current - 15 A / 36 A
External input fuse recommendation - B-6 A / C-4 A
Output data
Derating - 0.06 W/°C for +60 to +70 °C
Ripple and noise voltage max. - 100 mVpp
Overview
Dimensions (WxHxD) - 36 mm x 90 mm x 91 mm
Weight per unit (excl. packaging) - 220 g
Connection method - Screw terminals
Efficiency, typ. - 91.8 %
Power losses, typ. - 6.2 W 5.4 W
MTBF SN 29500 @ 40 °C (h) - 1982000 h
DC-OK signal - yes
NEC CLASS2 compliant
Cost optimized without compromising quality or reliability
Width only 36 mm
Efficiency up to 91.8 %
Low no-load power losses
Full power between -10 °C and +60 °C
Large screw terminals
