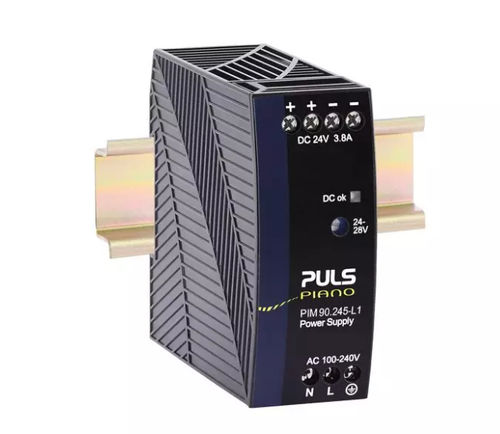

AC/DC power supply PIM90.245-L1adjustablesingle-phaseDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- adjustable
- Network
- single-phase
- Mounting
- DIN rail
- Certifications
- CE
- Other characteristics
- wide input range
- Input voltage
Max.: 240 V
Min.: 100 V
- Output voltage
Max.: 28 V
Min.: 24 V
- Current
3.2 A, 3.8 A
- Power
90 W
Description
Power factor - 0.45
Input inrush current - 40 A
External input fuse recommendation - B-6 A / C-4 A
Output data
Derating - 2.4 W/°C for +60 to +70 °C
Ripple and noise voltage max. - 100 mVpp
Overview
Dimensions (WxHxD) - 36 mm x 90 mm x 91 mm
Weight per unit (excl. packaging) - 270 g
Connection method - Screw terminals
Efficiency, typ. - 93.8 %
Power losses, typ. - 7.9 W 6 W
MTBF SN 29500 @ 40 °C (h) - 1 446 000 h
NEC Class 2 compliant
Cost optimized without compromising quality or reliability
Width only 36 mm
Efficiency up to 93.8 %
Low no-load power losses
Full power between -10 °C and +60 °C
Large screw terminals
