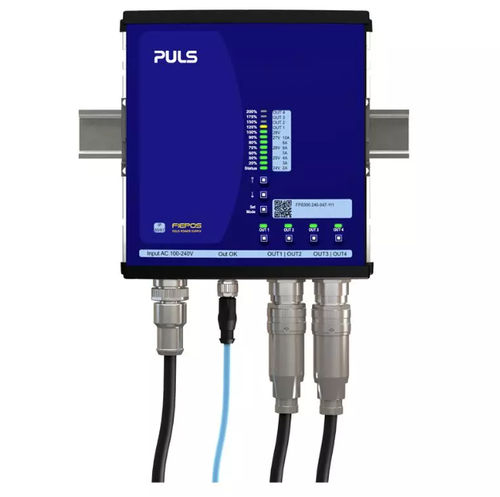

AC/DC power supply FPS300.245-047-111

multiple-outputadjustableswitching

Power factor - 0.97 Input inrush current limitation - active Input inrush current - 2.6 A / 6 A External input fuse recommendation - B-6 A / C-6 A Output data Power reserves - 600 W (up to 5s) Derating - 6 W/°C for +45 to +55 °C 10 W/°C for +55 to +70 °C 20 W/1000 m for altitudes >2000 m Ripple and noise voltage max. - 50 mVpp Overview Dimensions (WxHxD) - 181 mm x 183 mm x 59 mm Weight per unit (excl. packaging) - 1200 g Operating temp. range - -25 °C to 70 °C Connection method - Input: 7/8" 3pin | Output: 7/8" 4pin Efficiency, typ. - 95.7 % Power losses, typ. - 13.5 W MTBF SN 29500 @ 40 °C (h) - 384000 h 360 W up to 45 °C Output OK 600 Wpeak 5 s Outputs for actors and sensors separately protected 95.7 % full load and excellent partial load efficiencies Output connected to PE (PELV) Large output capacitors No potting compound used Negligible low input inrush current surge Full power between -25 °C and +55 °C DIN rail possible, with optional bracket Input 7/8" - 3pin / Output 2x 7/8" - 4pin
