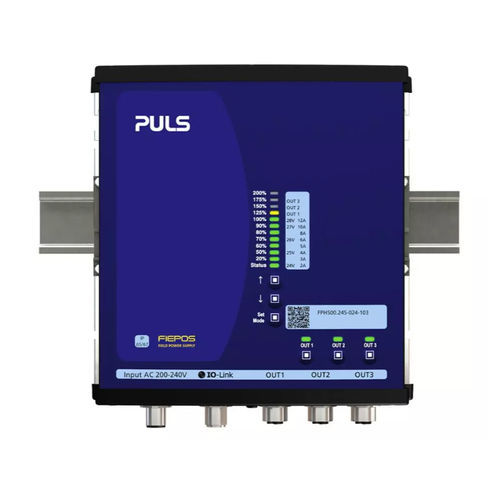

AC/DC power supply FPH500.245-024-103

triple-outputadjustableswitching

Power factor - 0.97 Input inrush current limitation - active Input inrush current - 6 A External input fuse recommendation - B-6 A / C-6 A Output data Power reserves - 1000 W (up to 5s) Derating - 10 W/°C for +45 to +70 °C 20 W/1000 m for altitudes >2000 m Ripple and noise voltage max. - 50 mVpp Overview Dimensions (WxHxD) - 181 mm x 183 mm x 59 mm Weight per unit (excl. packaging) - 1200 g Housing material - Metal Operating temp. range - -25 °C to 70 °C Connection method - Input: 7/8" 3pin | Output: M12-L Efficiency, typ. - 94.8 % Power losses, typ. - 27.8 W MTBF SN 29500 @ 40 °C (h) - 211000 h 1000 Wpeak 5s Outputs for actors and sensors shares one channel 94.8 % full load and excellent partial load efficiencies Output connected to PE (PELV) Version without connection to PE on request Large output capacitors Not potted Negligible low input inrush current surge Full power up to +45 °C IO-Link Input 7/8" 3pin / Output 3x M12-L
