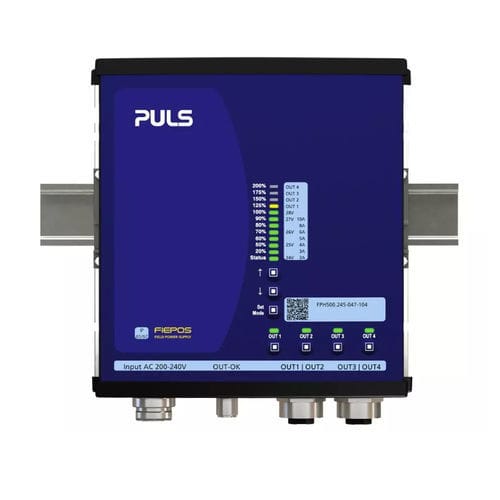

AC/DC power supply FPH500.245-047-104

multiple-outputadjustableswitching

Power factor - 0.97 Input inrush current limitation - active Input inrush current - 6 A External input fuse recommendation - B-6 A / C-6 A Output data Power reserves - 1000 W (up to 5s) Derating - 10 W/°C for +45 to +70 °C 20 W/1000 m for altitudes >2000 m Ripple and noise voltage max. - 50 mVpp Overview Dimensions (WxHxD) - 181 mm x 183 mm x 59 mm Weight per unit (excl. packaging) - 1200 g Operating temp. range - -25 °C to 70 °C Connection method - Input: 7/8" 3pin | Output: 7/8" 4pin Efficiency, typ. - 94.8 % Power losses, typ. - 27.8 W MTBF SN 29500 @ 40 °C (h) - 211000 h DC-OK signal - yes 1000 Wpeak 5s Outputs for actors and sensors separately protected 94.8 % full load and excellent partial load efficiencies DIN rail mounting possible, option “D” Output connected to PE (PELV) Version without connection to PE on request Large output capacitors Not potted Negligible low input inrush current surge Full power up to +45 °C Output OK Input: 7/8" 3pin | Ouput: 2x 7/8” 4pin
