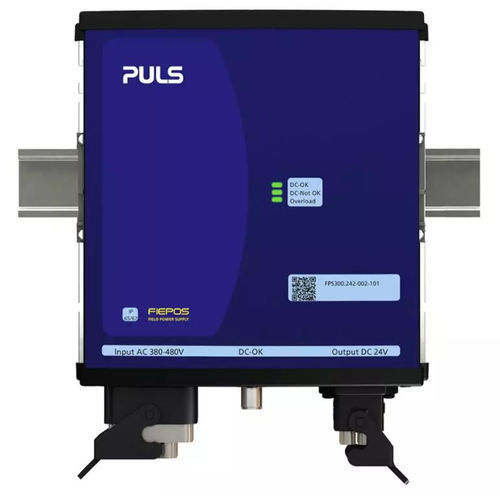

AC/DC power supply FPT300.242-002-101

adjustablethree-phaseDIN rail

Power factor - 0.9 Input inrush current limitation - active Input inrush current - 1.5 A External input fuse recommendation - B-6 A / C-6 A Output data Power reserves - 50 % (up to 60s) Derating - 10 W/°C for +55 to +70 °C Ripple and noise voltage max. - 100 mVpp Overview Dimensions (WxHxD) - 182 mm x 183 mm x 59 mm Weight per unit (excl. packaging) - 1200 g Operating temp. range - -25 °C to 70 °C Connection method - Input: HanQ4/2 | Output: HanQ4/0 Efficiency, typ. - 95 % Power losses, typ. - 15.8 W MTBF SN 29500 @ 40 °C (h) - 814000 h DC-OK signal - yes 450 W continuously for 60 s 600 Wpeak 1 s 95 % full load and excellent partial load efficiencies Output connected to PE (PELV) Version without connection to PE on request Large output capacitors Not potted Negligible low input inrush current surge Full power between -25 °C and +55 °C DC-OK relay contact Input HanQ4/2 / Output HanQ4/0
