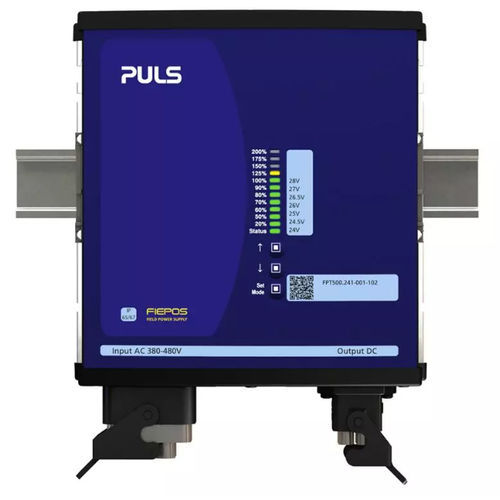

AC/DC power supply FPT500.241-001-102

adjustablethree-phaseDIN rail

Power factor - 0.95 Input inrush current limitation - active Input inrush current - 1.9 A / 1.8 A External input fuse recommendation - B-6 A / C-6 A Output data Power reserves - 1000 W (up to 5s) Derating - 10 W/°C for +45 to +70 °C 33 W/1000 m for altitudes >2000 m Ripple and noise voltage max. - 100 mVpp Overview Dimensions (WxHxD) - 181 mm x 183 mm x 59 mm Weight per unit (excl. packaging) - 1200 g Operating temp. range - -25 °C to 70 °C Connection method - Input: HanQ4/2 | Output: HanQ4/0 Efficiency, typ. - 95.6 % Power losses, typ. - 23 W MTBF SN 29500 @ 40 °C (h) - 290000 h 1000 Wpeak 5 s 95.6 % full load and excellent partial load efficiencies Output connected to PE (PELV) Version without connection to PE on request Large output capacitors Not potted Negligible low input inrush current surge Full power up to 45°C Input: Han Q4/2 / Output: Han Q4/0
