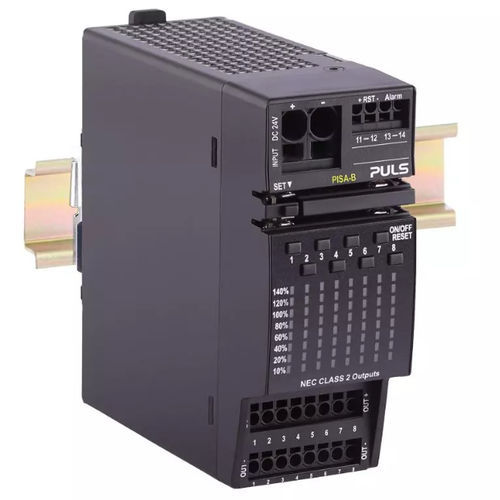

Magnetic circuit breaker PISA-B-8CL2-B1

currentvoltageelectronically controlled

DC Input voltage - DC 19.2 V - 30 V DC Input current at no load, typ. - 40 mA Input voltage required to switch on the outputs, typ. - 19 Vdc Output data Output current (sum of all outputs) - 30 A Turn-on delay of outputs - 750 ms Overview Dimensions (WxHxD) - 52 mm x 124 mm x 130 mm Weight per unit (excl. packaging) - 370 g Mounting method - DIN rail Housing material - Metal Operating temp. range - -25 °C to 70 °C Connection method - Push-in clamps Power losses, typ. - 7 W No-load losses, typ. - 1 W MTBF SN 29500 @ 40 °C (h) - 596000 h Eight current controlled outputs NEC Class 2 compliant Adaptive voltage-dependent current limitation for maximal output power according to NEC Class 2 Selective tripping of overloaded channels Compatible even with large capacitive loads Output currents displayed live on LED matrix Remote reset or reset via pushbutton Common alarm signal for tripped channels Parameter settings can be locked by PIN-code ON/OFF feature for each individual output Easy wiring - distribution terminals for negative pole
