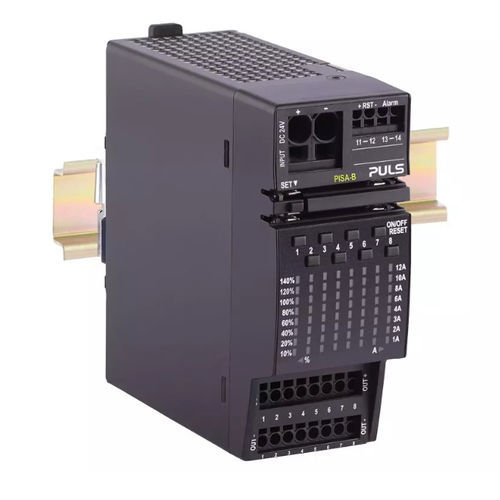

Magnetic circuit breaker PISA-B-812-B4currentvoltageelectronically controlled
Add to favorites
Compare this product
Characteristics
- Type
- magnetic
- Electrical characteristics
- voltage, current
- Operating mode
- electronically controlled
- Other characteristics
- DIN rail, in metal housing
- Primary current
35 mA
- VDC
Max.: 30 V
Min.: 19 V
- Rating
40 A
Description
Input voltage required to switch on the outputs, typ. - 19 Vdc
Output data
Turn-on delay of outputs - 750 ms
Overview
Dimensions (WxHxD) - 52 mm x 124 mm x 130 mm
Weight per unit (excl. packaging) - 370 g
Operating temp. range - -25 °C to 70 °C
Connection method - Push-in clamps
Power losses, typ. - 10.8 W
No-load losses, typ. - 1 W
MTBF SN 29500 @ 40 °C (h) - 507000 h
Eight current controlled outputs
Adjustable output currents for each channel
Selective tripping of overloaded channels
Compatible even with large capacitive Loads
Output currents displayed live on LED matrix
Remote reset or reset via push-buttons
Digital coded alarm signal for tripped channels
Parameter settings can be locked by PIN-code
ON/OFF feature for each individual output
Easy wiring - distribution terminals for negative pole
