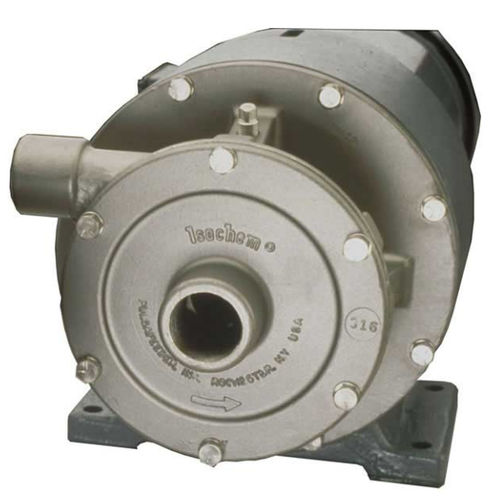

Chemical pump CMH2 series

magnetic-drivenormal primingcentrifugal

The Isochem centrifugal pump was designed with the user in mind. The features found in the CMC and CMH Series provide the user with a safe, leak-free installation, and long operating life. Isochem centrifugals are designed with the highest quality materials. This helps insure maximum operating life under the most demanding process conditions. Advanced bearing design supporting the magnetic assembly utilizes silicon carbide, providing superior wear and corrosion resistance assuring longer life. Hydraulic efficiency has been raised to a level unmatched in pumps of this size. Precision cast closed impellers and housings reduce flow resistance to a minimum, resulting in lower horse-power requirements. CMH2 is a multi-stage pump available in 316SS, Alloy 20, and Alloy C. The size of the inlet is 1 ½ inch FNPT and the outlet is 1 inch FNPT. The max flow for CMH2 is 94 gpm with a max pressure of 250 psi. The max viscosity is 100 cps. The horsepower range for CMH2 is 3 to 5.
