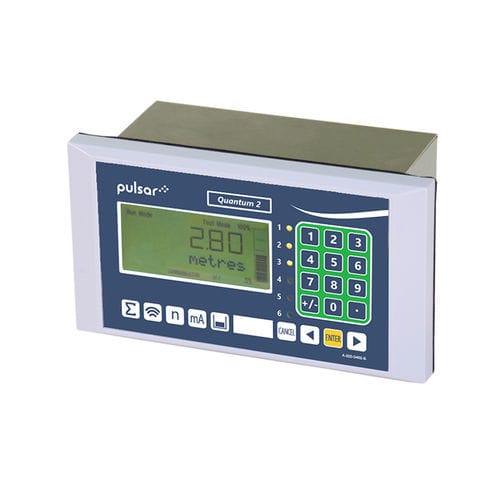

Pump station controller with alarm function Quantum 2

for pump managementwith pump auto-resetultrasonic

Quantum 2 by Pulsar Measurement is designed to be an intelligent and sophisticated pump controller. Featuring unique intelligent pumping, with 'time to spill' alarms and DATEM echo discrimination to provide solid performance and sophisticated level measurement. The unit has the ability to reset pumps automatically and can be used in those high-risk areas to enhance site management. Featuring a large onboard data logging facility, it enables the entire pump station process to be transparent. Quantum 2 Intelligent Pump Controller features 10 relays (digital outputs) and 7 digital inputs, with the option to add RS485 digital communications, allowing for the status of the operation to be monitored and the unit to be programmed remotely. FEATURES Highly intelligent pump controllers Time to spill calculation and warning Automatically resets tripped pumps Second mA output for pumped flowrate Easy prompt led set up RS485 Modbus and Profibus DP V0 and V1 options 10 relay outputs and 7 digital inputs Pump efficiency alarm function Peak power tariff avoidance Can also be configured using Pulsar's PC Suite software Spec: - Description: Controller Body Dimensions - 200 mm x 112 mm (7.87 in x 4.41 in) front, 165 mm x 105 mm (6.49 in x 4.13 in) cut-out Weight - Nominal 1.3 kg (2.9 lbs) Case Material - Stainless steel and polycarbonate, flame resistant to UL94 V0 Power Supply - 115 V AC +5% / -10% 50/60 Hz, 220 V AC +5% / -10%, 18-36 V AC Volt-free Contacts - 10 total. Relays 1-5 form C (SPDT) 5 A, 220 V AC. Relays 6-10 form C (SPDT) 3 A, 220 V AC Digital Inputs - 7 NO or NC with 24 V DC internal supply, available max. 20 mA
