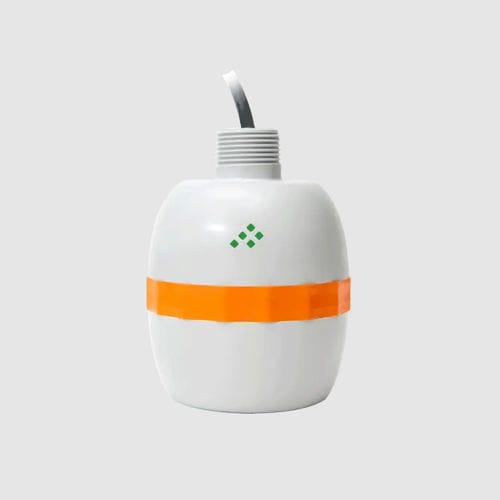

Radar level sensor REFLECT
for waterfor oilfor wastewater

Radar level sensor - REFLECT - Pulsar Measurement - for water / for oil / for wastewater
Radar level sensor - REFLECT - Pulsar Measurement - for water / for oil / for wastewater
Radar level sensor - REFLECT - Pulsar Measurement - for water / for oil / for wastewater - image - 2
Radar level sensor - REFLECT - Pulsar Measurement - for water / for oil / for wastewater - image - 3
Radar level sensor - REFLECT - Pulsar Measurement - for water / for oil / for wastewater - image - 4
Add to favorites
Compare this product


Characteristics

Technology
radar
Medium
for water, for oil, for wastewater, for corrosive liquids
Interface
4-20 mA, 2-wire, RS-485, Modbus, HART, NAMUR, Bluetooth
Applications
for the food industry, for storage tanks, for boreholes, fuel tank, for medical applications, high-temperature, for leak detection, for industrial applications, for the food and beverage industry, for hazardous areas, for CSO monitoring, for marine applications, manhole, for monitoring, for food applications, for OEM, rugged, for silos, for sumps, for small access holes, for corrosive environments, for the pharmaceutical industry, river, for basin
Approvals
FM/CSA, IEC-Ex
Other characteristics
compact, maintenance-free, rugged, ATEX, intrinsically safe, IECEx, FM/FMC, loop-powered, IP68
Level range

Max.: 20 m
(65'07" )

Min.: 4 m
(13'01" )

Process temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Description

Providing the highest confidence in level measurement in the most challenging conditions. The REFLECT™ 2-wire radar sensor provides accurate level or volume monitoring of liquids and solids in critical measurement applications, ensuring complete peace of mind with a product that requires minimal skills and human intervention, thereby minimizing the lifetime cost of ownership. Outperforming products that, up until now, required frequent and costly manual intervention to validate measurement integrity. Accurate, Reliable, and Robust The hermetically sealed Pulsar Measurement REFLECT™ level sensors require no routine servicing, able to withstand the harshest environments while maintaining accuracy in the presence of extreme dust, temperature, moisture, pressure, and chemicals. The narrow 6° beam angle and unique built-in DATEM software allow the sensor to focus on the true level, giving you the accurate data you need to make decisions about your operations. Unique and Secure Bluetooth and Web-Based App The REFLECT™ uses a web-based app to give an easy and convenient way for you to change parameters, access trend reports, and view echo traces. The web-based app is accessible through any device (PC, Android, or iOS). Once the control app has loaded on your device, you won’t need to worry about the signal. Using a web-based app also means there are no regular updates to install - just scan the QR code and you’re ready to go! Bluetooth is built into REFLECT™ as standard, but for added security and confidence that only authorized users can access the device, its range is user definable. Users can easily set the maximum signal range of each REFLECT™ to be up to 40 m
