UV disinfection unit PURION® PRO MULTIPLANT 2500 / 8water
Add to favorites
Compare this product
Characteristics
- Type
- UV
- Applications
- water
- Flow
6 m³/h, 8.5 m³/h
(211.89 ft³/h, 300.17 ft³/h)
Description

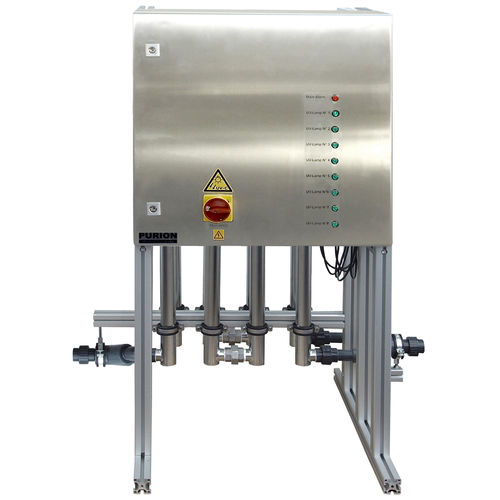

The PURION Multiplant 2 x 4 PURION PRO 2500 is designed to enable UV based desinfection for high flow rates even in case of very low UVC transmission.
The assembly is carried out in a rack made from grooved aluminium. 2 x 4 reactors 2500 are operated in series.
The plant can be configuered to be operated in hot water applications.
The Electric Control Cabinet can be optionally made from Stainless steele or steel powder-coated.
The Electric Control Cabinet can be equipped with the PURION Operating Time Counter (OTC2). Optionally the PURION Electric Control Cabinet can be equipped with the PURION Operating Power Detection (OPD2) (monitoring of one UV-reactor).
The potential free contact D1-D2 (error amount signaling) enables easy integration into existing remote monitoring systems.
Other PURION GmbH products
PURION UV plants for disinfection and purification of water and liquids
