Cooling spindle SM0605

high-speedhigh-torquethreaded

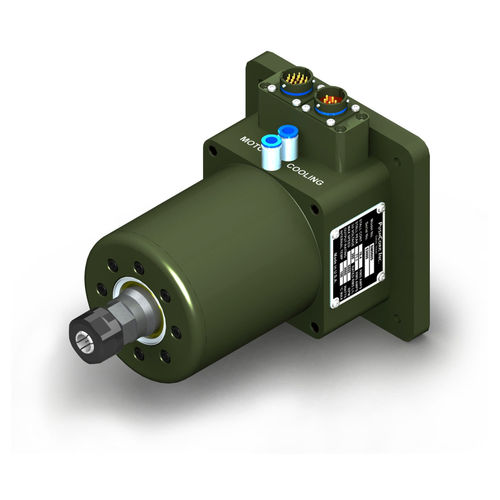

High Torque Servo Motor The PushCorp SM0605 is a 5.0 horsepower (3.8 kW) servo motor that has been developed as a lower priced alternative to the STC0605. The SM0605 uses the same 6,000 rpm high torque motor from the STC0605, but without the automatic collet release. Instead, a manual "ER" Series collet is used to clamp the tool shaft. This means that operator intervention is required when the media needs to be replaced. For applications where the abrasive media or the tools have a long life the manual collet is the ideal solution. Four fasteners easily mount the SM0605 on a AFD1000/70 carriage. SM0605 Features 5.0 horsepower (3.8 kW) servo motor (Liquid Cooling Required) 6000 maximum RPM (Reversible) ± 5% speed regulation Fully adjustable and reversible speed Manual "ER" Series collet Collets available from 1/16 - 1/2 inch (1 - 12mm) Sealed ceramic bearings for long service life PushCorp proprietary high-speed shaft seal Mounts directly to PushCorp Active and Passive compliant tools All fittings, fasteners, and threaded holes are METRIC
