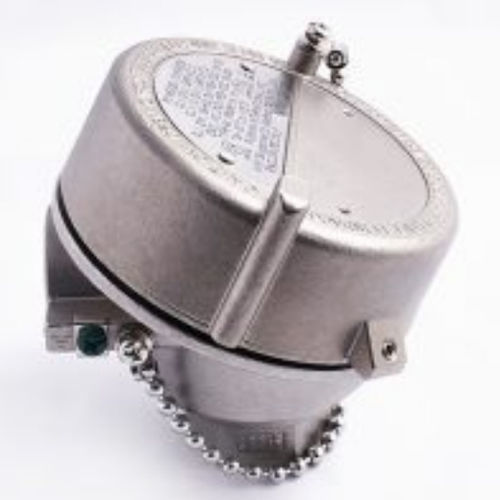

Thermocouple connection head 101 PSET Series stainless steelIP68explosion-proof
Add to favorites
Compare this product
Characteristics
- Options
- thermocouple, stainless steel
- Protection level
- IP68, explosion-proof, IP66
Description
Stainless Steel 304/316 explosion proof Thermocouple head provided with ATEX certification. The connection head accommodates a terminal block or transmitter 2″ (50mm) in diameter.
EXPLOSION-PROOF CERTIFIED
• IP66/68 CERTIFIED
• WIDE SELECTION OF CONDUIT SIZES
• WIDE RANGE OF ACCESSORIES
• Material of Construction: S.S.304/S.S.316
• Certification: ATEX
• Connections: ½”NPT,3/4”NPT, M20x1.5P ,M24 x 1.5
• Mounting Holes: See Attached Drawing
• Surface Finishing: S.S.
• “O” Ring: Buna “N”
• Weight: 1.22 KG (2.7 LBS)
• Accessories: Terminal Block (Ceramic / Bakelite)
Catalogs
1014PSET/1016PSET
2 Pages
