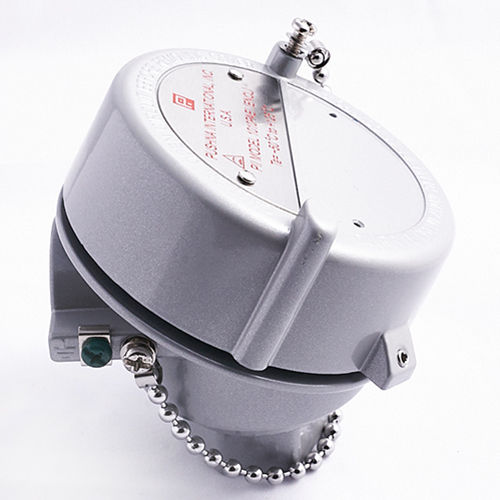

Temperature sensor connection head 1110PAEI series

aluminumthermocoupleRTD

Aluminum explosion proof Thermocouple head, provided with IECEx certification, IP66 rating. The connection head accommodates an elliptical block or transmitter 2″ (50mm) in diameter. • - EXPLOSION-PROOF CERTIFIED • - NEMA 4X AND IP66/68 CERTIFIED • - WIDE SELECTION OF CONDUIT SIZES • - OPTION FOR CUSTOMIZED SS HALF MOON NAMEPLATE • - Material of Construction: Die-Cast Aluminum or * Copper free Aluminum • - Certification: IECEx • - Connections: ½”NPT,3/4”NPT,1/2”,M20x1.5P ,M24 x 1.5 • - Mounting Holes: See Attached Drawing • - Surface Finishing: Painted Grey or ( custom color*) • - “O” Ring: VITON • - Weight: 0.5 KG (1.1 LBS) • - Accessories: Terminal Block (Ceramic / Bakelite)
