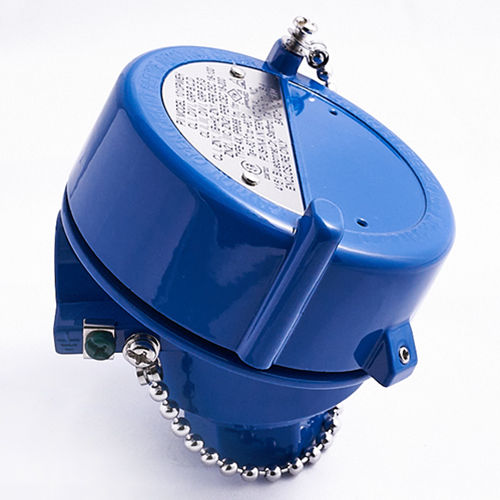

Temperature sensor connection head 1110PWEH Series

aluminumthermocoupleexplosion-proof

Aluminum explosion proof Thermocouple head, Epoxy Coated Blue provided with FM/CSA certification, IP66 rating. The connection head accommodates an elliptical block or transmitter 2″ (50mm) in diameter • - EXPLOSION-PROOF CERTIFIED • - NEMA 4X AND IP66 CERTIFIED • - WIDE SELECTION OF CONDUIT SIZES • - OPTION FOR CUSTOMIZED SS HALF MOON NAME PLATE • - Material of Construction:Die-Cast Aluminum or * Copper free Aluminum • - Certification: FM / CSA • - Connections: ½”NPT,3/4”NPT,1/2”,M20x1.5P ,M24 x 1.5 • - Surface Finishing: Epoxy Blue (custom color*) • - “O” Ring: VITON • - Weight: 0.5 KG (1.1 LBS) • - Accessories: Terminal Block (Ceramic / Bakelite)
