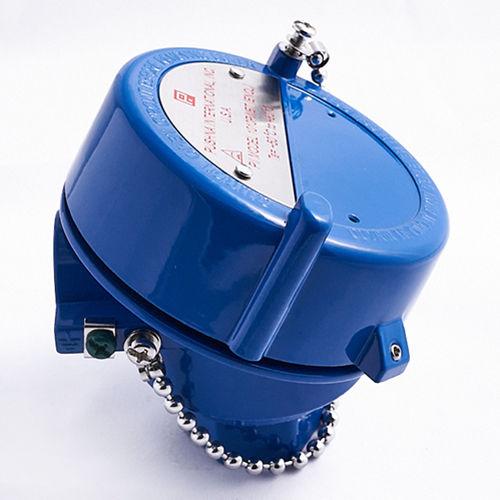

Temperature sensor connection head 1110PWET series

aluminumthermocouplestainless steel

Aluminum explosion proof Thermocouple head, Epoxy coated blue provided with ATEX certification, IP66 rating. The connection head accommodates an elliptical block or transmitter 2″ (50mm) in diameter. • - EXPLOSION-PROOF CERTIFIED • - IP66 CERTIFIED • - WIDE SELECTION OF CONDUIT SIZES • - OPTION FOR CUSTOMIZED SS HALF MOON NAMEPLATE • - Material of Construction: Die-Cast Aluminum or Copper-free Aluminum* • - Certification: ATEX • - Connections: ½”NPT,3/4”NPT,1/2”,M20x1.5P ,M24 x 1.5 • - Surface Finishing: Epoxy Blue or Custom Color* • - “O” Ring: VITON • - Weight: 0.5 KG (1.1 LBS) • - Accessories: Terminal Block (Ceramic / Bakelite)
