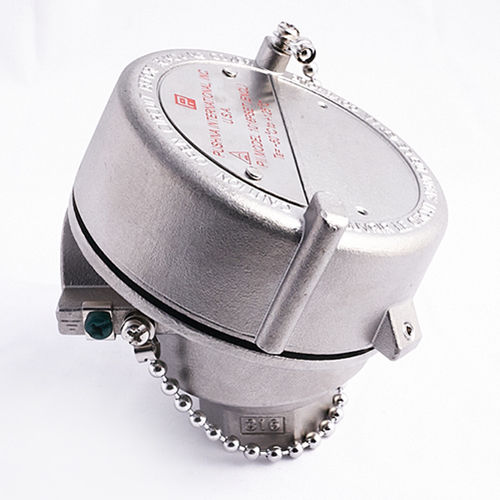

Temperature sensor connection head 111 PSET seriesthermocouplestainless steelexplosion-proof
Add to favorites
Compare this product
Characteristics
- Options
- for temperature sensors, thermocouple, stainless steel
- Protection level
- explosion-proof, IP66
Description
Stainless Steel 304 or 316 explosion proof Thermocouple head, provided with ATEX certification, IP66 rating. The connection head accommodates an elliptical block or transmitter 2″ (50mm) in diameter.
• EXPLOSION-PROOF CERTIFIED
• IP66 CERTIFIED
• WIDE SELECTION OF CONDUIT SIZES
• WIDE RANGE OF ACCESSORIES
• Material of Construction: S.S.304/S.S.316
• Certification: ATEX
• Connections: ½”NPT,3/4”NPT, M20x1.5P ,M24 x 1.5
• Mounting Holes: See Attached Drawing
• Surface Finishing: S.S.
• “O” Ring: VITON
• Weight: 1.22 KG (2.7 LBS)
• Accessories: Terminal Block (Ceramic / Bakelite)
Catalogs
No catalogs are available for this product.
See all of PUSHNA INTERNATIONAL‘s catalogs
