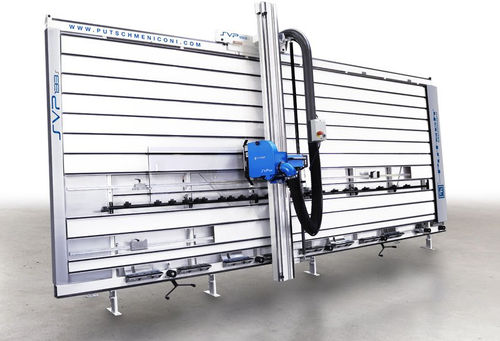

Panel saw SVP 133 S

verticalwoodfor plastics

Wall manual panel saw SVP 133 S | The new wall saw with the perfect high performance Quality Price ! SVP 133 S Panel Saw Putsch® Meniconi SVP 133 S panel saw has 4 cutting points to do the vertical cutting using the stop allowing to adjust the panel cutting size. Thanks to the reduced space dimensions and its unbeatable price manual vertical panel SVP 133 S saw is employed with success in the most various appliance sectors, from joinery to graphics, from composite panels manufacturing industry till plastic materials industry. Putsch® Meniconi Spa optionals are able to cut wood chipboard panels, aluminium panels, alucobond panels of the most various materials with the most different dimensions. TECHNICAL DETAILS Motor output: Potencia del motor 5HP Blade diameter: 250 mm Blade r.p.m. (min): 5300 Shifting frame: manual Max. lenght of horizontal cut: 3200 mm Max. height of vertical cut: 1900 mm Max. height of horizontal cut: 1700 mm Max depth of cut: 60 mm Scoring blade diameter: 70mm
