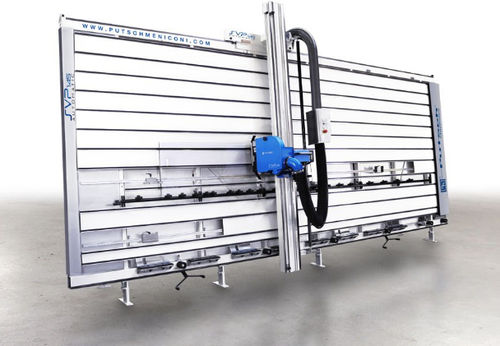

Panel saw SVP 145 A

horizontalverticalwood

SVP 145 AUTOMATIC | the best Automatic Panel Saw with the fastest cutting speed: your Best Way to Cut ! SVP 145 AUTOMATIC Panel Saw SVP 145 AUTOMATIC Putsch® Meniconi panel saw has as standard equipment the automatic movement of the beam and the carriage to perform every horizontal and vertical cutting with adjustable feeding speed by inverter from 10 to 24 mts/1’. This panel saw has the possibility to select the stop of the blade carriage Putsch® Meniconi at the end of the cycle or return to the initial point. SVP 145 AUTOMATIC is equipped with sliding frame for narrow pieces, flippable device to lay small pieces, self-breaking motor and automatic device with retractable wheels to easy the cutting of PVC panels, Plexiglass panels and plastic materials panels. SVP 145 AUTOMATIC is ideal to cut wood, plywood, phaesite, masonite, ledorex, listellar, multilayer, OSB, laminated, hard wood, chipboard, acrylic, forex, HPL, plastic laminates, lexan, makrolon, metacrylate, plexiglass, polycarbonate, PVC, plasterboard, Corian®, insulated panels, Trespa® and polyuretane. TECHNICAL DETAILS Motor output: 6HP Blade diameter: 250 mm Blade r.p.m. (min): 5300 Shifting frame: manual Max. lenght of horizontal cut: 4200 mm Max. height of vertical cut: 2200 mm Max. height of horizontal cut: 2080 mm Max depth of cut: 60 mm Scoring blade diameter: 70mm
