Panel saw SVP 320

verticalwoodfor plastics

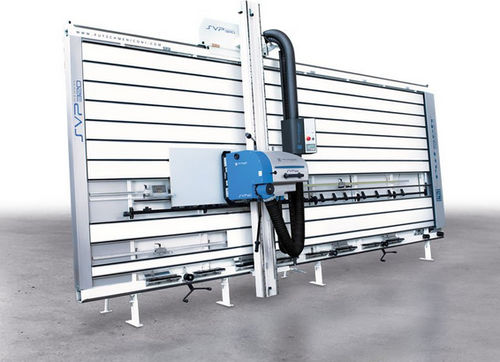

Vertical panel saw SVP 320 | Your Best Way to cut Putsch® Meniconi with linear guides for your always customized cutting Putsch® Meniconi Spa – Vertical Panel Saw SVP 320 Vertical panel saw SVP 320 MANUAL has a saw unit with 2 double blades with independent motor HP 0,25 and mechanic insertion. SVP 320 MANUAL also has standard equipment of the head along two linear guides, permitting to the operator, a high speed of use, and most precise and accurate tuning. These characteristics make manual vertical panel saw SVP 320 unique in the sector of vertical panel saws. TECHNICAL DETAILS Motor output: 5HP Blade diameter: 250 mm Blade r.p.m. (min): 5300 Shifting frame: electric Max. lenght of horizontal cut: 2200 mm Max. height of vertical cut: 1900 mm Max. height of horizontal cut: 1700 mm Max depth of cut: 60 mm Scoring blade diameter: 80mm
